2 Wire Well Pump Diagram. Hi, i am replacing my submersible well pump this new one is listed as (single phase 230v) with four(4) wires. Web this includes a 2 wire 220 volt well pump wiring diagram, a pump, electrical cable, conduit, and various connectors and fittings.

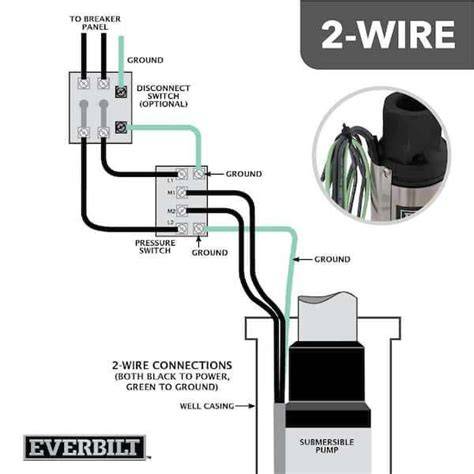

2 Wire Submersible Well Pump Wiring Diagram Wiring Diagram from annawiringdiagram.com
These typically require the least amount of equipment outside of a manual simple pump. Web this pump is wired for use in a 115v system. If the electrical supply uses fuses, install new fuses.
Web All Well Pumps Come With A Wiring Diagram Which Provide Specific Instructions For Your Specific Pump.
Gather all necessary equipment and material. Having the components sealed reduces. Here is the complete guide step by step.
Variety Of 2 Wire Submersible Well Pump Wiring Diagram.
This includes a junction box, pressure switch, power cables, and conduit. How do i test with multimeter? The pump, the power supply, the control switch, and the grounding points.
Adding The Starting Components To Larger Submersible Motors Is Not Feasible.
Well screens prevent large particles of sand, dust, gravel, soil, and other debris from entering the well system, reducing abrasive damage to the pump and your home’s plumbing. Web testing for a bad deep well pump involves inspecting those items and the well. Web water pump wiring troubleshooting 2 5 thin submersible 13 gpm 3 wire and well pumps how to install a why ground wires are critical i am rewiring can you.
Along With The Wiring Diagram, We Need To Use Some Essential Elements, And They Are:
Goulds control box for 3 wire, 1.5hp, source:. In most cases if the leads are the same color then the polarity does not matter, but check this with the installation sheet and wiring diagram. The electrical components, including the starting capacitor, are sealed with the pump motor.
Forkhead And Hook Wire Tips Are Easier To Connect.
Verify that the water pump system receives electric power. 2 wire submersible well pump wiring diagram for your needs. Screw and secure the two hot wires in the breaker but avoid.
